John Deere - Hydraulic excavator, Hydraulic pump - Coupling, Engine to pump

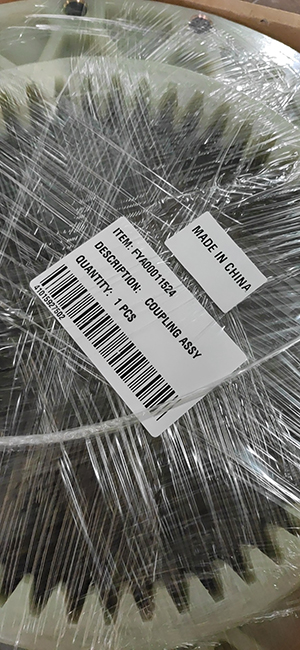

OEM Part Number: FYA00011524

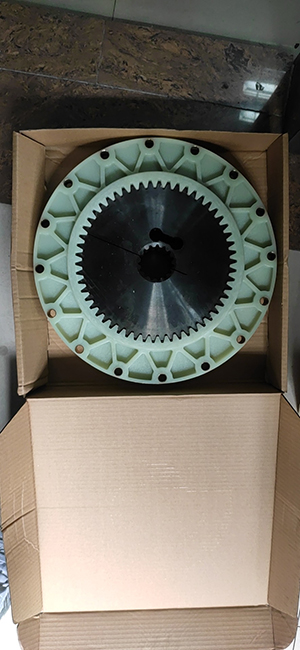

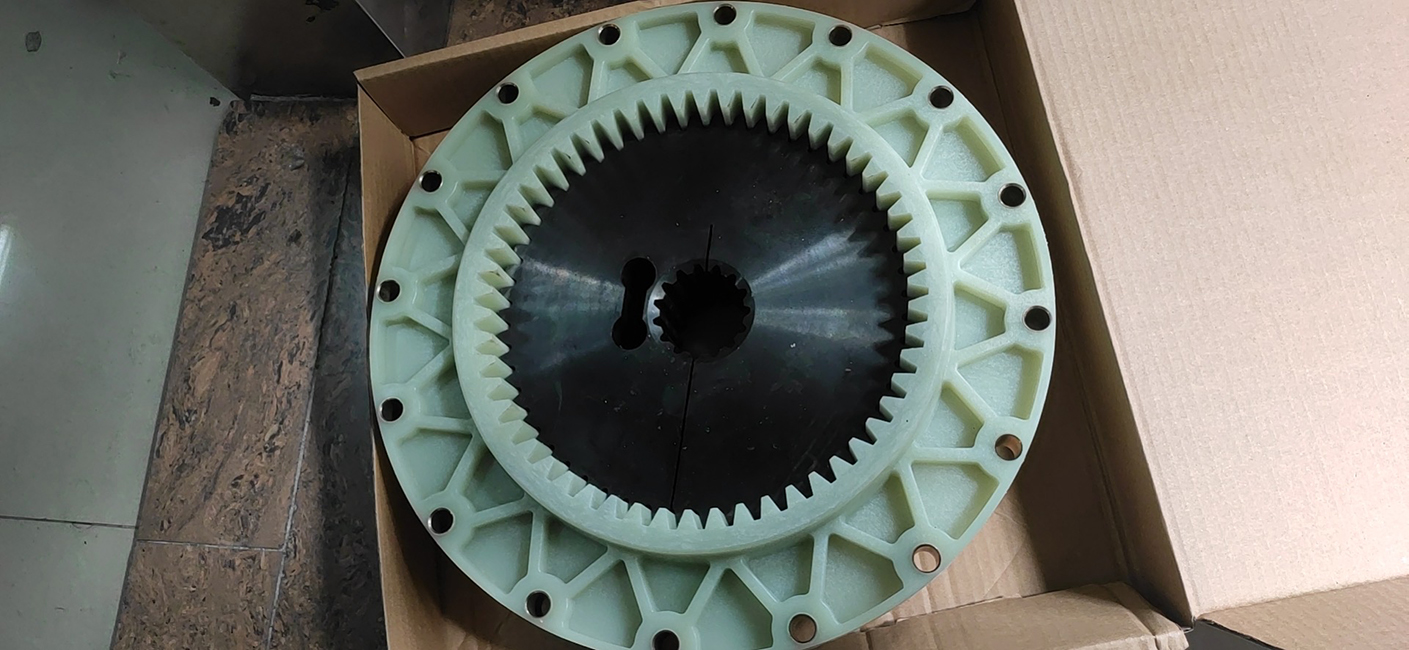

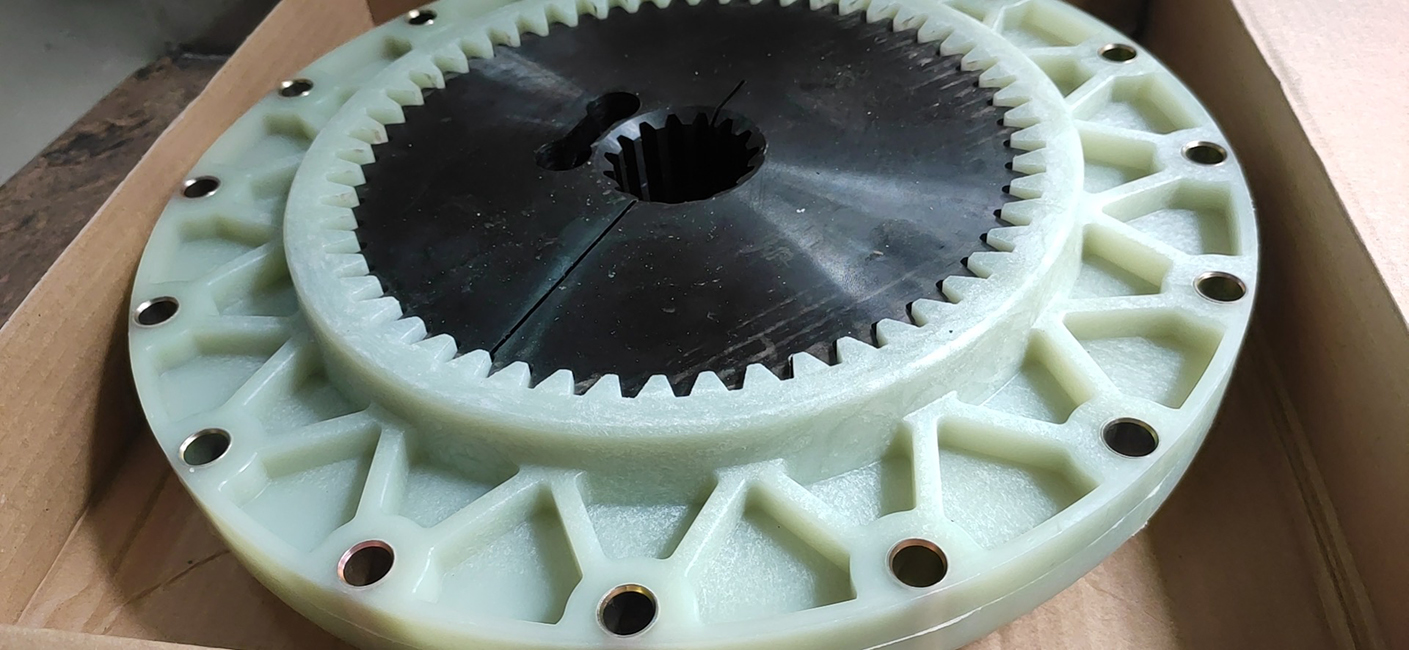

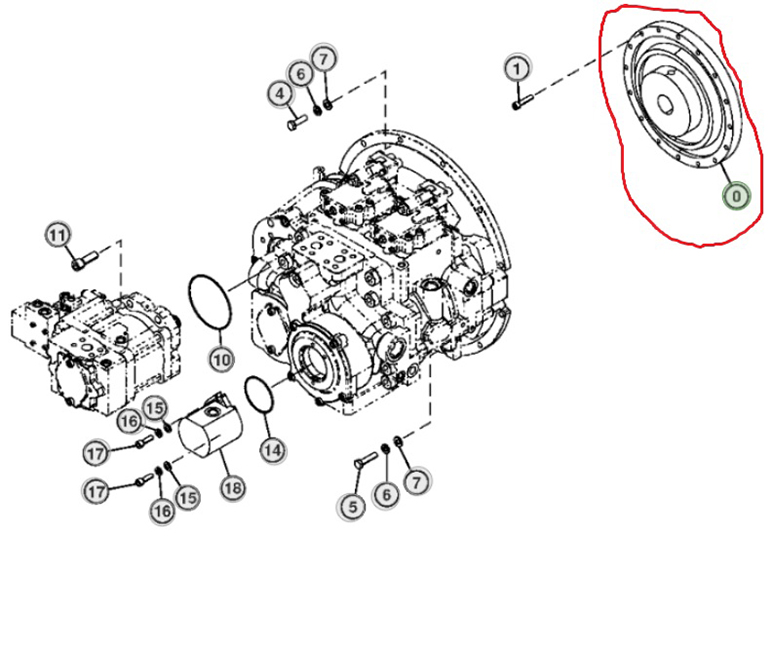

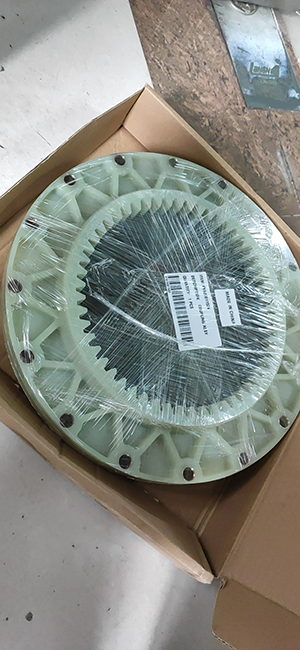

Description: Complete hydraulic pump to engine coupling assembly including the coupling element and the splined center hub, for a John Deere excavator model 450DLC.

Machine Model: 450DLC

Other OEM Part Numbers: FYA00039869, FYA00066969

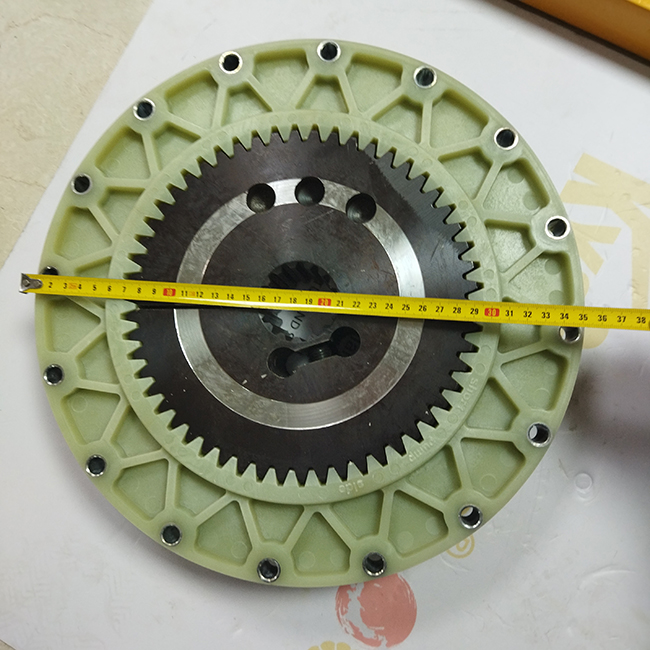

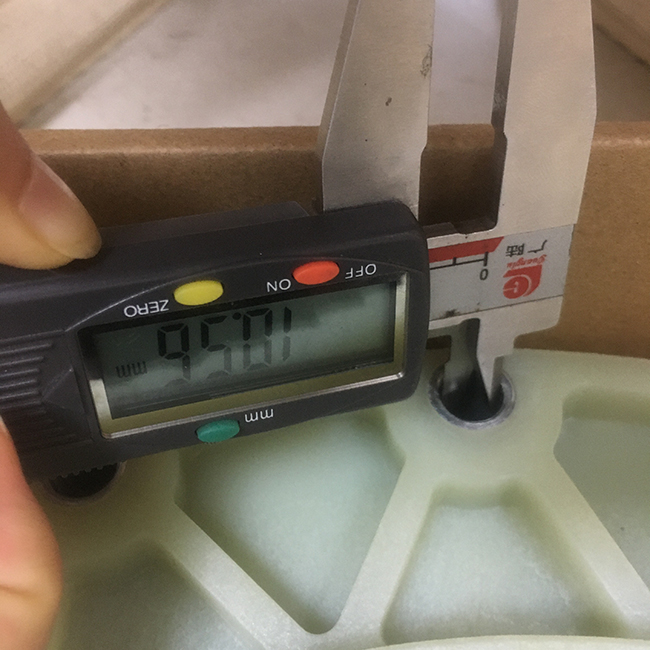

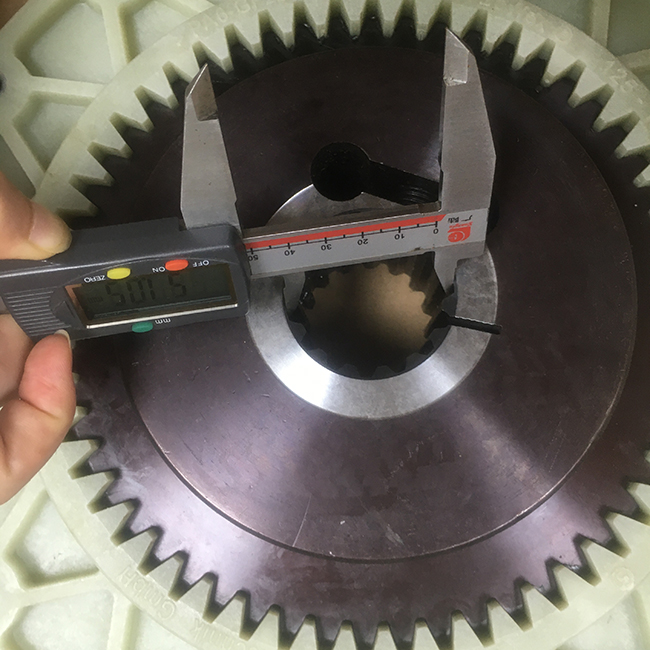

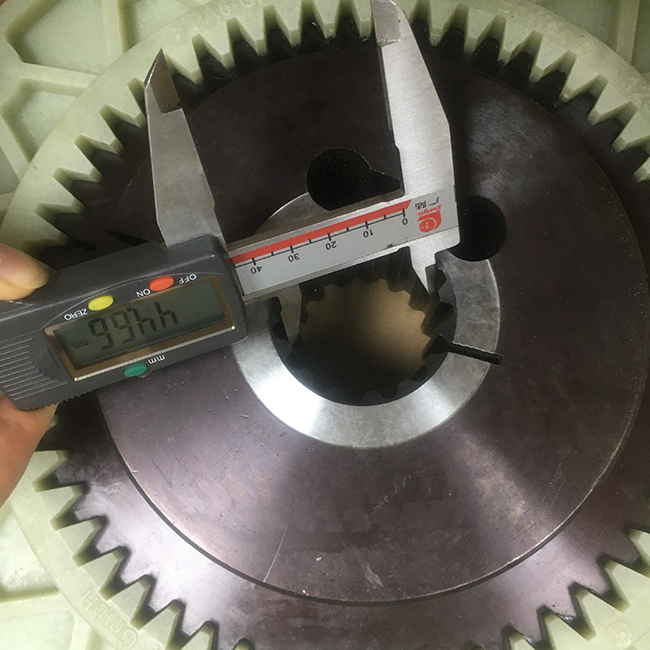

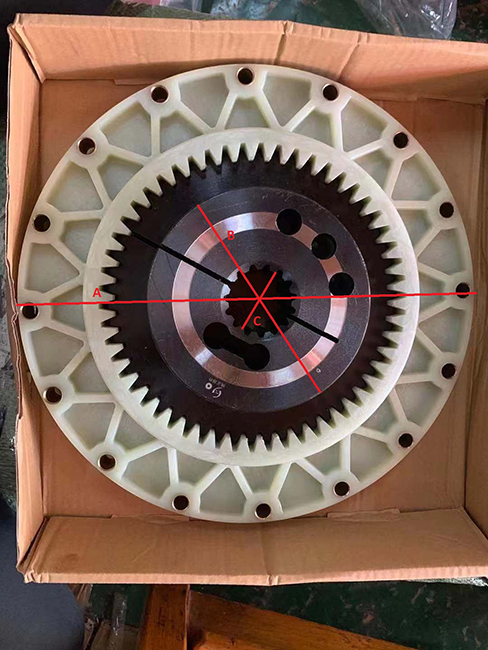

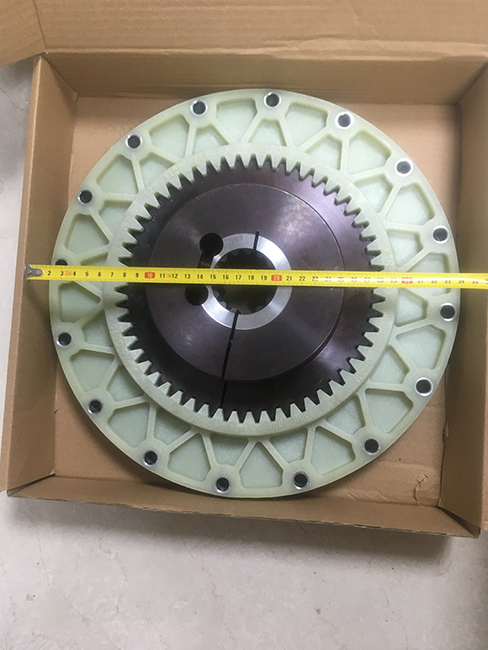

Notes: Center hub has 15 splines and 54 exterior teeth. Coupling element has 54 teeth. Coupling has 16 equidistant mounting bolt holes, 10.56 mm ID each Coupling assembly OD is 352 mm (13.85"). Center hub ID is 44.66 mm from tooth tip to tooth tip, and 51.05 mm without teeth.

Dimensions: 194

Unit Weight (lb): 32.00

Price: $993.81
